All frames are made to measure.

• Sizes stated should be the overall frame size including any cill and frame extensions (if required).
• All dimensions to be supplied in Metric.
• All frame styles are viewed from outside.
• We do not make any fitting allowances on the sizes you provide. The size you state will be the size we manufacture.

All external cills are 30mm high and will need to be included in the overall height.

93mm stub cill
The stub cill protrudes just 21mm from the external frame.

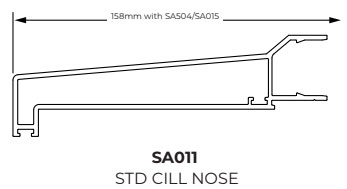

158mm standard cill
The most common and standard cill size covers most applications. Protrudes 86mm from the external frame.

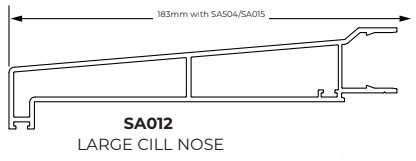

183mm cill
If your frame is set further back into the brickwork then you may require the oversized cill which protrudes 111mm from the frame.

Frame Extensions/Add On's

A frame extender allows you to increase the thickness of the frame. Useful for properties with deep plaster, render or tiles. 15mm and 45mm extensions are available.

Remember, if you require any extensions, these need to be included in the overall dimensions.

Sheerline Aluminium Window Profiles

Contemporary or Flush Sash Contemporary Profile. The Contemporary frame profile is 72mm front to back and the Flush Sash Contemporary frame profile is 80mm front to back.

Toughened Glass

Toughened glass is upto 5 times as strong as ordinary glass. Toughened safety glass should be fitted in all windows or glazed areas that are lower than 800mm from the floor level.

Laminated Glass

The laminated glass consists of two pieces of glass, one 6.4mm thick containing a sandwich of plastic interlayer. Offering additional protection as the glass cannot be broken into. It's the same glass found in car windscreens and shop fronts.

Internal Georgian Bars

We offer an array of decorative Georgian Bar designs. The internal bars are fitted within the sealed unit and 18mm thick as standard, available in our extensive range of colours to match the profile colour.

External Astragal Bars

We offer an array of decorative external bar designs. The astragal bars are fitted on the outside of the sealed unit and 20mm thick as standard, available in our extensive range of colours to match the profile colour.

Square Lead

We offer 9mm decorative square lead on the external pane of glass.

Diamond Lead

We offer 9mm decorative diamond lead on the external pane of glass.

Fixing Screws & Packers

The installation pack includes a selection of universal frame and glazing packers, large 120mm self tapping frame screws (no rawl plugs required) and self tapping cill screws. Fixing screws for extension pieces will also be supplied if required.
